Right Angle SSMA Jack/Female RF Coaxial Connector 4 Hole Flange Mount , Microstrip Flat

Brand Name : ELT

Model Number : SSMA-KWFD18

Certification : ISO9001, IS014001

Place of Origin : Xi'an, China

MOQ : MOQ 50pcs

Price : The more quantity, the cheaper the price will be

Payment Terms : T/T,L/C,D/P

Supply Ability : As requirements

Delivery Time : within 8-12 weeks

Packaging Details : 1pcs/plastic bag;100pcs/carton

Product Name : RA SSMA Female Microstrip Connector

Model : SSMA-KWFD18

Frequency Range : 0.3MHz-18GHz

Impedance : 50Ω

Rated Voltage : 250v

DWV : 750V

Insulation Resistance : ≥5000MΩ

Center Conductor : Copper Alloy, Gold Plated

Outer Conductor : Copper Alloy, Gold Plated

Mount Method : 4 Hole Flange Mount

Microstrip : Flat Size 0.2×φ0.88

Screw : 10-36UNS-2

Insulators : PTFE

Contact Now

4 Hole Flange Mount Right Angle SSMA / Mini SMA RF Coax Microstrip Flat Connector Up to 18GHz
Product Specifications
Items Value
Product Name RA SSMA Female Microstrip Flat Connector
Model SSMA-KWFD18
Frequency Range 0.3MHz-18GHz
Impedance 50Ω
Rated Voltage 250v
DWV 750V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Mount Method 4 Hole Flange Mount
Insulators PTFE
Samples In Stock, Available
Product Overview
The Right Angle SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:
  • Compact size with wide frequency bandwidth
  • Superior mechanical and electrical performance
  • High reliability in demanding applications
  • Threaded connection (10-36UNF-2)
  • Characteristic impedance of 50Ω
  • Frequency operation up to 30GHz
Interface Dimensions
Right Angle SSMA Jack/Female RF Coaxial Connector 4 Hole Flange Mount , Microstrip Flat

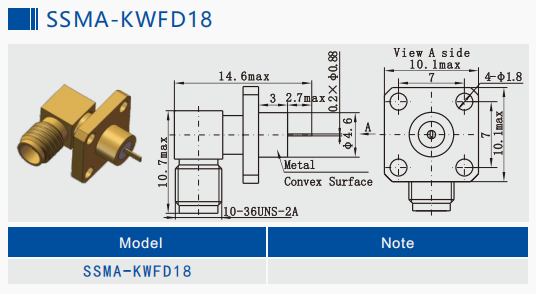

SSMA Right Angle 4 Hole Flange Mount Connectors with Microstrip Flat Dimensions SSMA-KWFD18 (Unit: mm).
Right Angle SSMA Jack/Female RF Coaxial Connector 4 Hole Flange Mount , Microstrip Flat
Other Stainless Steel 4 Hole flange Mount Right Angle SSMA Microstrip Flat Connectors Models: SSMA-KWFD61G

Right Angle SSMA Jack/Female RF Coaxial Connector 4 Hole Flange Mount , Microstrip Flat

Applications
Ideal for high-precision microwave signal transmission in:
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
Right Angle SSMA Jack/Female RF Coaxial Connector 4 Hole Flange Mount , Microstrip Flat
Packaging & Shipping
Packaging: Each 4 hole flange mount right angle SSMA connector is carefully packaged in protective cartons to ensure safe transit. Right Angle SSMA Jack/Female RF Coaxial Connector 4 Hole Flange Mount , Microstrip Flat Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar flange mount right angle connector models, please check our catalog. While some models are in stock, all can be produced quickly to meet customer requirements.
